2-channel UHF PLL microphone system

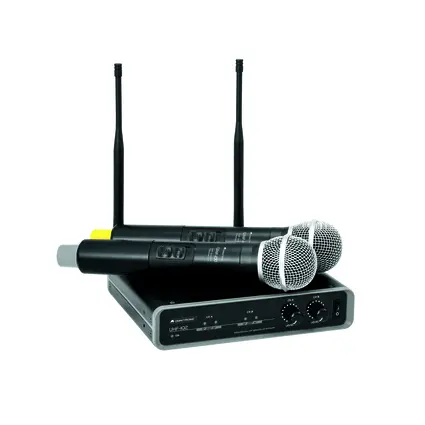

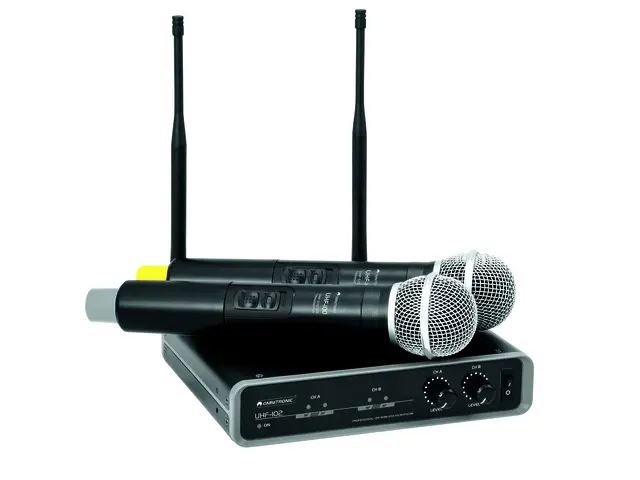

OMNITRONIC UHF-102 Wireless Mic System 825.3/864.1MHz

2-channel UHF PLL microphone system

• 2-channel receiver units and 2 hand-held microphones with UHF PLL technology
• Available in the license-free frequency ranges 823-832 MHz and 863-865 MHz
• Parallel operation of up to 8 transmission channels is possible without any interference
• 2 separate channels with volume controls and LEDs for carrier signal and audio signal
• Balanced XLR output per channel
• 6.3 mm jack for mixed signal output
• Jack cable included
• Microphones with color indication
• Matching pocket transmitters can be ordered separately
• 483 mm rack installation possible with optional mounting brackets
• License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
• Operating range up to 60m with line-of-sight
• (19") 48.3 cm rack installation possible 1 U

microphone

• Polar pattern: Cardioid

Package contents

• 2 x microphone, 1 x receiver, 1 x external mains adapter, 2 x antenna, 1 x jack cable, 1 x user manual, 1 x declaration of conformity
